Weighbridge
Capacity(Tons) | 30 | 40 | 50 | 60 | 80 | 100 | 120 | 150 | 200 | ||
Division Value | 5KG/10KG/20KG | ||||||||||
Platform size:L*W(m) | Recommended size | Packing(container) | |||||||||
3*7 | √ | √ | 1x20'GP | ||||||||
3*9 | √ | √ | √ | √ | √ | 1x20'GP | |||||
3*12 | √ | √ | √ | √ | √ | √ | 1x20'GP | ||||
3*14 | √ | √ | √ | √ | √ | √ | 1x20'GP | ||||
3*16 | √ | √ | √ | √ | √ | 1x20'GP | |||||
3*18 | √ | √ | √ | √ | √ | 1x20'GP | |||||
3*20 | √ | √ | √ | √ | √ | 1x40'GP | |||||
3*22 | √ | √ | √ | √ | 1x40'GP | ||||||
3*24 | √ | √ | √ | 1x40'GP | |||||||
3*45 | √ | √ | √ | ||||||||
Remark | Other capacity, size and apprearance can be customized according your requirements. |
Product description

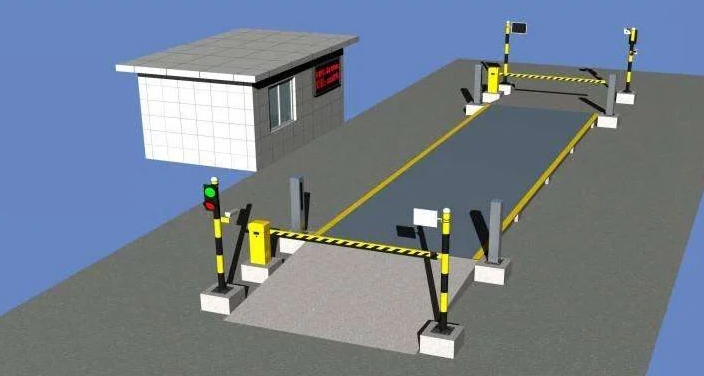

The standard configuration of the truck scale is mainly composed of three main components: the load-bearing force transmission mechanism (scale body), the high-precision weighing sensor and the weighing display instrument, so that the basic weighing function of the truck scale can be completed, and it can also be based on different users. Demand, optional printer, large screen display, computer management system to complete the needs of higher level data management and transmission.
Apply of truck scales 30 ton
Applicable to metallurgy, mining, chemical, food, logistics and other industries, is the ideal choice for weighing trucks, trailers, semi-trailers, container trucks, dump trucks, agricultural vehicles and other heavy-duty vehicles.
Technical parameter
Product name | Scs series electronic truck scale |
Display accuracy | 10 kg |
Product width | 2.5m 3m 3.2m 3.4m (or other size) |
Product length | 5m-24m |
Weighing range | 10T 200T |
Product configuration | 4 bridge sensors, one junction box, one D2008 meter, one bill of paper, one outdoor display, one weighing software, one printer (optional), one computer (optional) |
Foundation pit production | The drawings are generally provided by us and the customers are constructed according to the drawings. |
