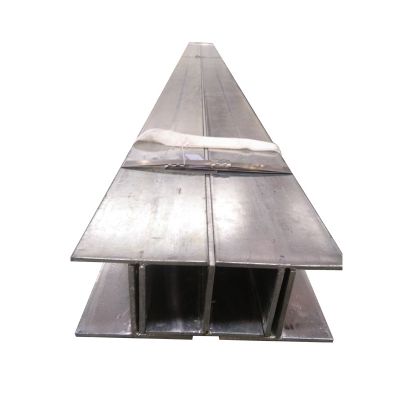

Welded T bar-Welded Products

Galvanised steel T-bars are used to support double brickwork in areas where the opening below will not be infilled. The base of the T-bar closes the cavity. Due to constantly being exposed to environment elements, all of our T-bars are hot dip galvanized so that there are never any issues with rust or corrosion.

Product Name	Galvanised Steel T Bar
Material	Q235/Q355/G300/G350
Galvanised Standard	AS/NZS4680
R3 Durability	AS/NZS2699.3
Horizontal thickness	6mm or as customized
Vertical thickness	10mm or as customized
Horizontal leg and vertical leg	200mm or as customized
Length	as customized
Surface	hot dipped galvanized
Application	Support brickwork structure opens, steel construction

Size	Lengths
200x6(H), 200x6(V)mm	900, 1200, 1300, 1400, 1500, 1600, 1800, 2100,2400mm
200x6(H), 200x8(V)mm	2400, 2700, 3000, 3300, 3600, 3900mm
200x6(H), 200x10(V)mm	4200, 4500, 4800, 5100, 5400, 5700mm
200x10(H), 200x10(V)mm	5100, 5400, 5700, 6000, 6300, 7200mm
200x10(H), 250x10(V)mm	5200,5400, 6000mm (can be cut to length)
200x10(H), 250x12(V)mm	2500,5400, 6000mm (can be cut to length)
300x10(H), 250x10(V)mm	6000mm (can be cut to length)
Customized	Customized
